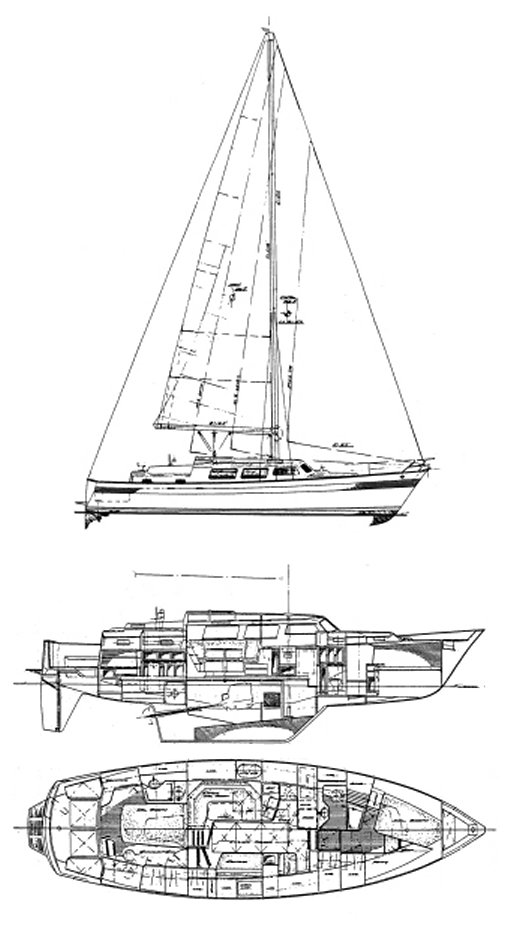

The Seamaster 46 is a 46.0ft masthead ketch designed by Robert Perry and built in fiberglass by Lien Hwa Industrial Corp. since 1981.
50 units have been built.
The Seamaster 46 is a moderate weight sailboat which is slightly under powered. It is very stable / stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat. The fuel capacity is excellent. There is an excellent water supply range.
Main features
| Model | Seamaster 46 | ||
| Length | 46 ft | ||
| Beam | 14.25 ft | ||
| Draft | 5.83 ft | ||
| Country | Taiwan (Asia) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 15.34 | ||
| Ballast / displ. | 40 % | ||
| Displ. / length | 230.19 | ||
| Comfort ratio | 35.47 | ||
| Capsize | 1.78 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 40 ft | ||
| Maximum draft | 5.83 ft | ||
| Displacement | 33000 lbs | ||
| Ballast | 13200 lbs | ||
| Hull speed | 8.47 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Ketch | ||
| Sail area (100%) | 982 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 572.70 sq.ft | ||
| Sail area main | 416.42 sq.ft | ||
| I | 57.50 ft | ||
| J | 19.92 ft | ||
| P | 51 ft | ||
| E | 16.33 ft |
Engine
| Nb engines | 1 | ||
| Total power | 85 HP | ||
| Fuel capacity | 300 gals |
Accommodations
| Water capacity | 500 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Lien Hwa Industrial Corp. | ||
| Designer | Robert Perry | ||
| First built | 1981 | ||
| Last built | 0 | ?? | |
| Number built | 50 |
