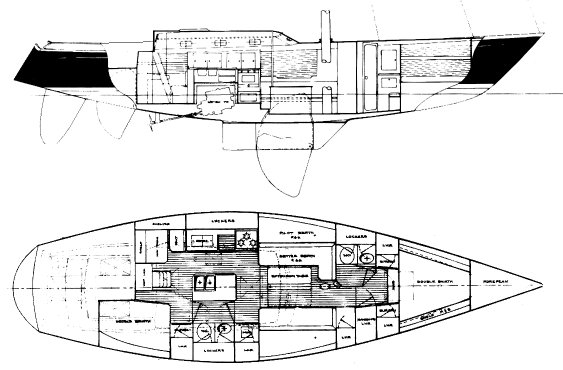

The Seguin 48 is a 48.67ft masthead sloop designed by Craig Walters and built in fiberglass by Lyman-Morse since 1986.
The Seguin 48 is a moderate weight sailboat which is a high performer. It is stable / stiff and has a good righting capability if capsized. It is best suited as a fast cruiser.
Main features
| Model | Seguin 48 | ||
| Length | 48.67 ft | ||
| Beam | 13.75 ft | ||
| Draft | 4.92 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 21.25 | ||
| Ballast / displ. | 39.92 % | ||
| Displ. / length | 222.65 | ||
| Comfort ratio | 30.33 | ||
| Capsize | 1.85 |
Hull
| Hull type | Monohull keel with centerboard | ||
| Construction | Fiberglass | ||
| Waterline length | 37.50 ft | ||
| Maximum draft | 9.25 ft | ||
| Displacement | 26300 lbs | ||
| Ballast | 10500 lbs | ||
| Hull speed | 8.21 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 1170 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 661.49 sq.ft | ||
| Sail area main | 508.64 sq.ft | ||
| I | 63.30 ft | ||
| J | 20.90 ft | ||
| P | 57.80 ft | ||
| E | 17.60 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Lyman-Morse | ||
| Designer | Craig Walters | ||
| First built | 1986 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
