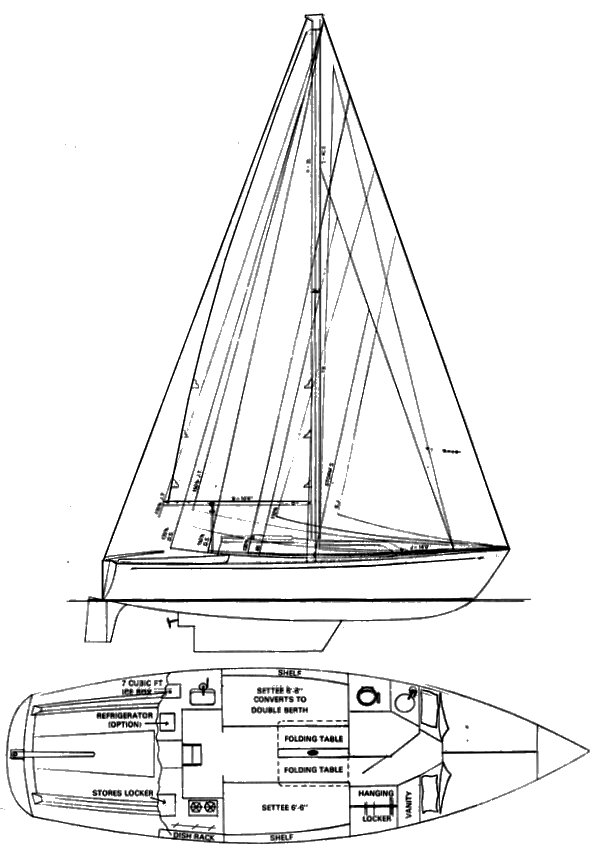

The Soverel 30 mk ii iii is a 30.0ft cutter designed by Bill Soverel/Mark Soverel and built in fiberglass by Soverel Marine (USA) since 1974.
The Soverel 30 mk ii iii is a moderate weight sailboat which is a high performer. It is stable / stiff and has an excellent righting capability if capsized. It is best suited as a fast cruiser. The fuel capacity is originally small. There is a short water supply range.
Main features
| Model | Soverel 30 mk ii iii | ||
| Length | 30 ft | ||
| Beam | 9.33 ft | ||
| Draft | 3.50 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 21.69 | ||
| Ballast / displ. | 35.79 % | ||
| Displ. / length | 241.30 | ||
| Comfort ratio | 27.56 | ||
| Capsize | 1.77 |
Hull
| Hull type | Monohull keel with centerboard | ||
| Construction | Fiberglass | ||
| Waterline length | 26 ft | ||
| Maximum draft | 9.50 ft | ||
| Displacement | 9500 lbs | ||
| Ballast | 3400 lbs | ||
| Hull speed | 6.83 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Cutter | ||
| Sail area (100%) | 606 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 283.50 sq.ft | ||
| Sail area main | 322.50 sq.ft | ||
| I | 40.50 ft | ||
| J | 14 ft | ||
| P | 43 ft | ||
| E | 15 ft |
Engine
| Nb engines | 1 | ||
| Total power | 20 HP | ||
| Fuel capacity | 20 gals |
Accommodations
| Water capacity | 55 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Soverel Marine (USA) | ||
| Designer | Bill Soverel/Mark Soverel | ||
| First built | 1974 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
