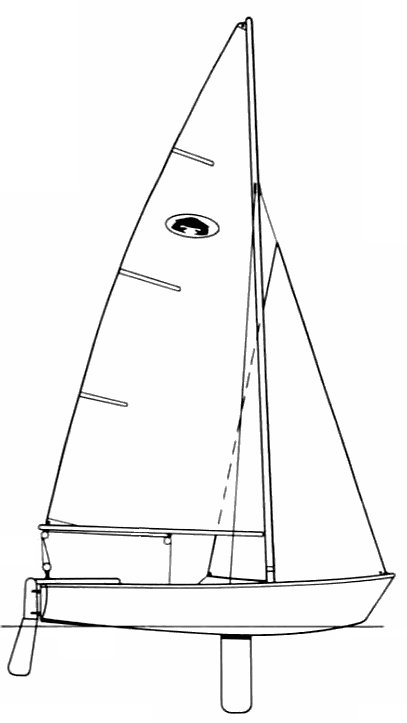

The Blue crab 11 is a 11.08ft fractional sloop designed by Harry R. Sindle and built in fiberglass by Lockley Newport Boats (USA) since 1971.
900 units have been built.
The Blue crab 11 is an ultralight sailboat which is a very high performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a racing boat.
Main features
| Model | Blue crab 11 | ||
| Length | 11.08 ft | ||
| Beam | 5.17 ft | ||
| Draft | 0.25 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 41.20 | ||
| Ballast / displ. | 0 % | ||
| Displ. / length | 82.91 | ||
| Comfort ratio | 3.30 | ||
| Capsize | 3.54 |
Hull
| Hull type | Daggerboard dinghy | ||
| Construction | Fiberglass | ||
| Waterline length | 10.25 ft | ||
| Maximum draft | 2.75 ft | ||
| Displacement | 200 lbs | ||
| Ballast | 0 lbs | ||
| Hull speed | 4.29 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 88 sq.ft | ||
| Air draft | 19.67 ft | ||
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Lockley Newport Boats (USA) | ||
| Designer | Harry R. Sindle | ||
| First built | 1971 | ||
| Last built | 0 | ?? | |
| Number built | 900 |
