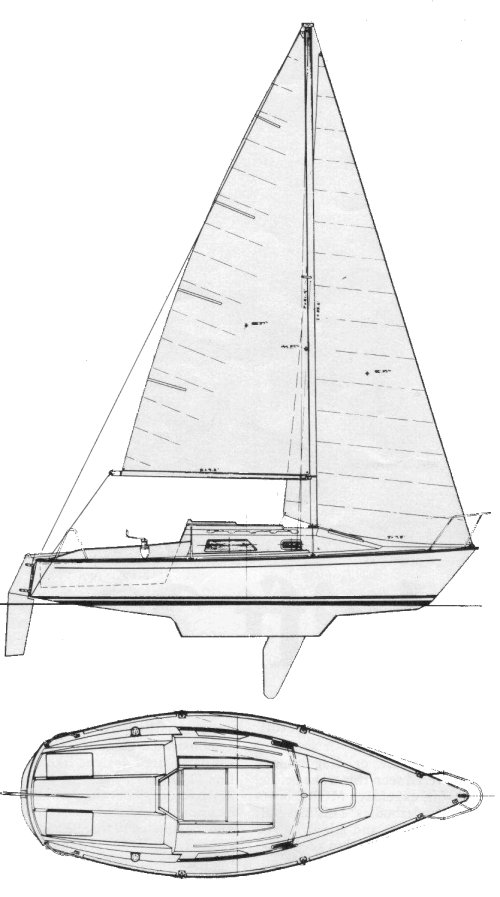

The Spindrift 22 is a 21.5ft masthead sloop designed by Jim Taylor and built in fiberglass between 1982 and 1987.
400 units have been built.
The Spindrift 22 is a light sailboat which is a good performer. It is stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Spindrift 22 | ||
| Length | 21.50 ft | ||
| Beam | 8.16 ft | ||
| Draft | 1.50 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 19.66 | ||
| Ballast / displ. | 30.15 % | ||
| Displ. / length | 127.90 | ||
| Comfort ratio | 9.48 | ||
| Capsize | 2.60 |
Hull
| Hull type | Monohull keel with centerboard | ||
| Construction | Fiberglass | ||
| Waterline length | 19.08 ft | ||
| Maximum draft | 4.67 ft | ||
| Displacement | 1990 lbs | ||
| Ballast | 600 lbs | ||
| Hull speed | 5.85 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 194 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 96 sq.ft | ||
| Sail area main | 98.44 sq.ft | ||
| I | 25.60 ft | ||
| J | 7.50 ft | ||
| P | 21.40 ft | ||
| E | 9.20 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Jim Taylor | ||
| First built | 1982 | ||
| Last built | 1987 | ||
| Number built | 400 |
