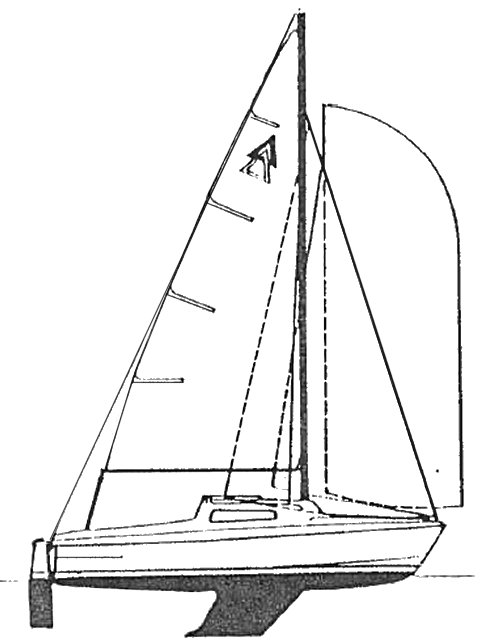

The Stortriss mkii is a 17.22ft fractional sloop designed by Per Brohäll and built in fiberglass by ABC Fabrikerna (SWE) between 1969 and 1977.
1000 units have been built.
The Stortriss mkii is a light sailboat which is a reasonably good performer. It is stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Stortriss mkii | ||
| Length | 17.22 ft | ||
| Beam | 6.56 ft | ||
| Draft | 3.12 ft | ||
| Country | Sweden (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 17.18 | ||
| Ballast / displ. | 31.63 % | ||
| Displ. / length | 157.07 | ||
| Comfort ratio | 10.19 | ||
| Capsize | 2.41 |
Hull
| Hull type | Monohull fin keel with transom hung rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 15.42 ft | ||
| Maximum draft | 3.12 ft | ||
| Displacement | 1290 lbs | ||
| Ballast | 408 lbs | ||
| Hull speed | 5.26 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 127 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 47.04 sq.ft | ||
| Sail area main | 80.31 sq.ft | ||
| I | 17.39 ft | ||
| J | 5.41 ft | ||
| P | 19.19 ft | ||
| E | 8.37 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ABC Fabrikerna (SWE) | ||
| Designer | Per Brohäll | ||
| First built | 1969 | ||
| Last built | 1977 | ||
| Number built | 1000 |
