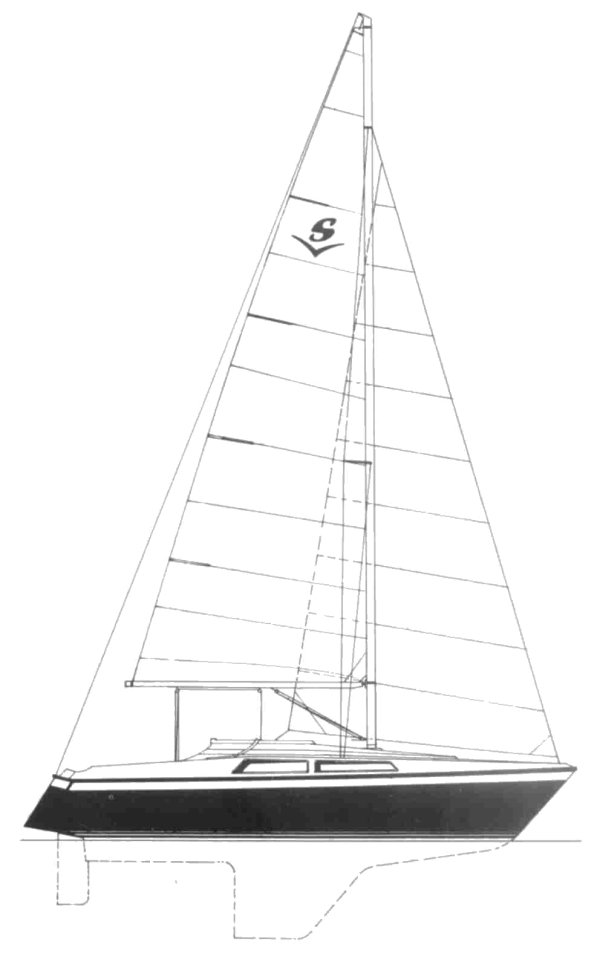

The Sunwind 27 is a 26.97ft fractional sloop designed by Tord Sundén and built in fiberglass between 1982 and 1990.
300 units have been built.
The Sunwind 27 is a moderate weight sailboat which is slightly under powered. It is stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally very small. There is a very short water supply range.
Main features
| Model | Sunwind 27 | ||
| Length | 26.97 ft | ||
| Beam | 8.53 ft | ||
| Draft | 5.09 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 14.88 | ||
| Ballast / displ. | 39.28 % | ||
| Displ. / length | 295.03 | ||
| Comfort ratio | 24.04 | ||
| Capsize | 1.86 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 21.06 ft | ||
| Maximum draft | 5.09 ft | ||
| Displacement | 6173 lbs | ||
| Ballast | 2425 lbs | ||
| Hull speed | 6.15 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 312 sq.ft | ||
| Air draft | 40.70 ft | ||
| Sail area fore | 128.26 sq.ft | ||
| Sail area main | 184.54 sq.ft | ||
| I | 28.44 ft | ||
| J | 9.02 ft | ||
| P | 32.15 ft | ||
| E | 11.48 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 13 gals |
Accommodations
| Water capacity | 20 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Tord Sundén | ||
| First built | 1982 | ||
| Last built | 1990 | ||
| Number built | 300 |
