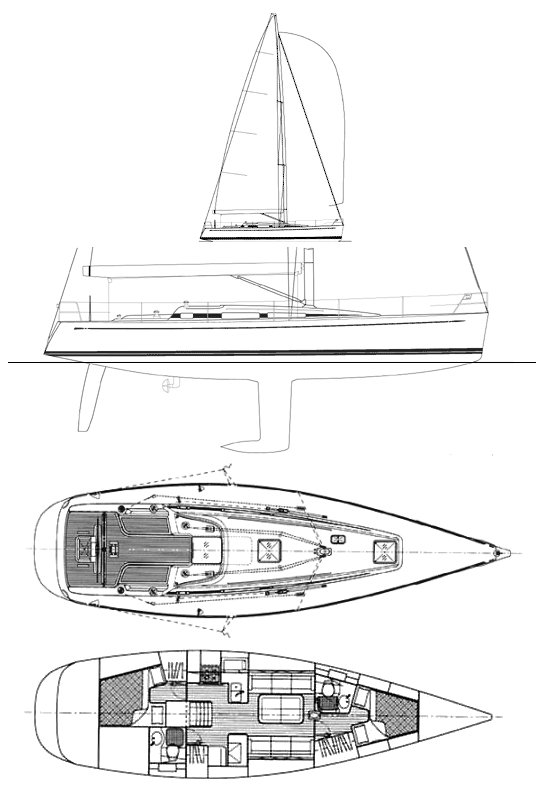

The Swan 45 is a 45.37ft fractional sloop designed by German Frers and built in fiberglass by Nautor (Swan sailboats) since 2001.
50 units have been built.
The Swan 45 is a light sailboat which is a very high performer. It is stable / stiff and has a good righting capability if capsized. It is best suited as a fast cruiser.
Main features
| Model | Swan 45 | ||
| Length | 45.37 ft | ||
| Beam | 12.83 ft | ||
| Draft | 9.19 ft | ||
| Country | Finland (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 25.05 | ||
| Ballast / displ. | 39.69 % | ||
| Displ. / length | 156.12 | ||
| Comfort ratio | 27.14 | ||
| Capsize | 1.84 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 39.60 ft | ||
| Maximum draft | 9.19 ft | ||
| Displacement | 21716 lbs | ||
| Ballast | 8620 lbs | ||
| Hull speed | 8.43 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 1214 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 546.48 sq.ft | ||
| Sail area main | 667.91 sq.ft | ||
| I | 61.68 ft | ||
| J | 17.72 ft | ||
| P | 61.22 ft | ||
| E | 21.82 ft |
Engine
| Nb engines | 1 | ||
| Total power | 58 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Nautor (Swan sailboats) | ||
| Designer | German Frers | ||
| First built | 2001 | ||
| Last built | 0 | ?? | |
| Number built | 50 |
