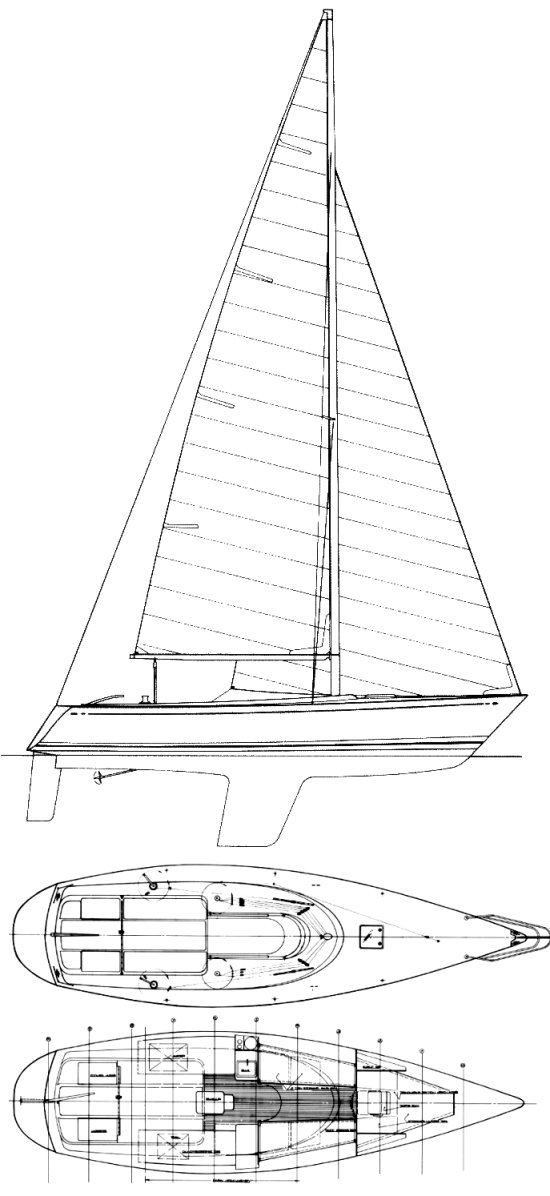

The Tartan 10 is a 33.14ft fractional sloop designed by Sparkman & Stephens and built in fiberglass by Tartan Marine since 1978.
400 units have been built.
The Tartan 10 is a light sailboat which is a high performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a racing boat. The fuel capacity is originally very small. There is a very short water supply range.
Main features
| Model | Tartan 10 | ||
| Length | 33.14 ft | ||
| Beam | 9.25 ft | ||
| Draft | 5.87 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 21.95 | ||
| Ballast / displ. | 49.85 % | ||
| Displ. / length | 151.96 | ||
| Comfort ratio | 18.54 | ||
| Capsize | 1.97 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 27 ft | ||
| Maximum draft | 5.87 ft | ||
| Displacement | 6700 lbs | ||
| Ballast | 3340 lbs | ||
| Hull speed | 6.96 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 486 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 210 sq.ft | ||
| Sail area main | 276.72 sq.ft | ||
| I | 35 ft | ||
| J | 12 ft | ||
| P | 40.25 ft | ||
| E | 13.75 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 12 gals |
Accommodations
| Water capacity | 19 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Tartan Marine | ||
| Designer | Sparkman & Stephens | ||
| First built | 1978 | ||
| Last built | 0 | ?? | |
| Number built | 400 |
