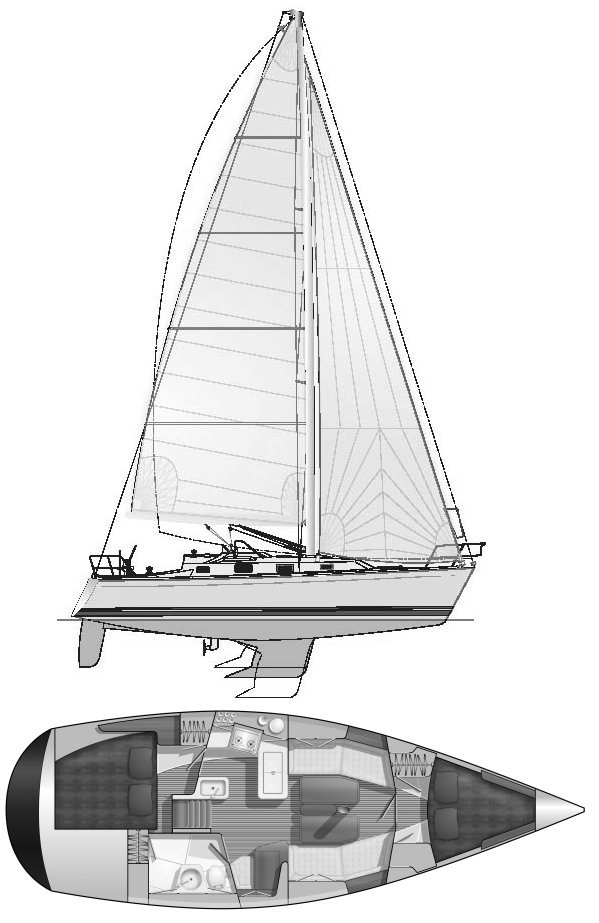

The Tartan 3400345 is a 34.42ft masthead sloop designed by Tim Jackett and built in fiberglass by Tartan Marine since 2002.
The Tartan 3400345 is a light sailboat which is a high performer. It is reasonably stable / stiff and has a low righting capability if capsized. It is best suited as a racing boat. The fuel capacity is originally small. There is a short water supply range.
Main features
| Model | Tartan 3400345 | ||
| Length | 34.42 ft | ||
| Beam | 11.92 ft | ||
| Draft | 6.50 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 20.37 | ||
| Ballast / displ. | 32.41 % | ||
| Displ. / length | 171.28 | ||
| Comfort ratio | 19.46 | ||
| Capsize | 2.16 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 30.42 ft | ||
| Maximum draft | 6.50 ft | ||
| Displacement | 10800 lbs | ||
| Ballast | 3500 lbs | ||
| Hull speed | 7.39 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 620 sq.ft | ||
| Air draft | 55 ft | ||
| Sail area fore | 293.25 sq.ft | ||
| Sail area main | 326.93 sq.ft | ||
| I | 46 ft | ||
| J | 12.75 ft | ||
| P | 44.33 ft | ||
| E | 14.75 ft |
Engine
| Nb engines | 1 | ||
| Total power | 30 HP | ||
| Fuel capacity | 25 gals |
Accommodations
| Water capacity | 60 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Tartan Marine | ||
| Designer | Tim Jackett | ||
| First built | 2002 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
