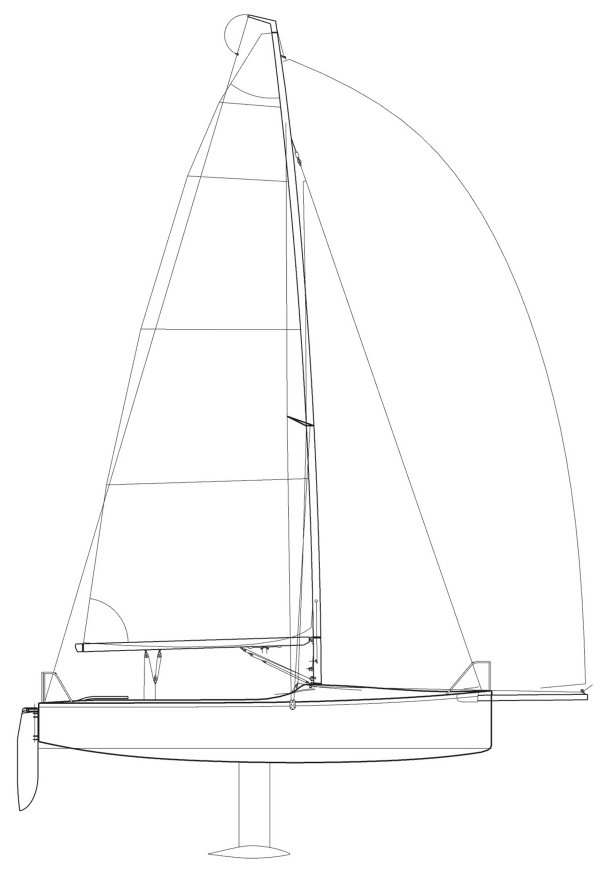

The Ufo 22 is a 21.65ft fractional sloop designed by Umberto Felci and built in carbon fiber or composite since 1998.
The Ufo 22 is an ultralight sailboat which is a very high performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a racing boat.
Main features
| Model | Ufo 22 | ||
| Length | 21.65 ft | ||
| Beam | 8.37 ft | ||
| Draft | 1.64 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 36.06 | ||
| Ballast / displ. | 40.01 % | ||
| Displ. / length | 69.82 | ||
| Comfort ratio | 6.68 | ||
| Capsize | 2.87 |
Hull
| Hull type | Monohull lifting keel | ||
| Construction | Carbon fiber or composite | ||
| Waterline length | 21.65 ft | ||
| Maximum draft | 5.25 ft | ||
| Displacement | 1587 lbs | ||
| Ballast | 635 lbs | ||
| Hull speed | 6.23 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 306 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 116.81 sq.ft | ||
| Sail area main | 158.64 sq.ft | ||
| I | 25.90 ft | ||
| J | 9.02 ft | ||
| P | 28.87 ft | ||
| E | 10.99 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Umberto Felci | ||
| First built | 1998 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
