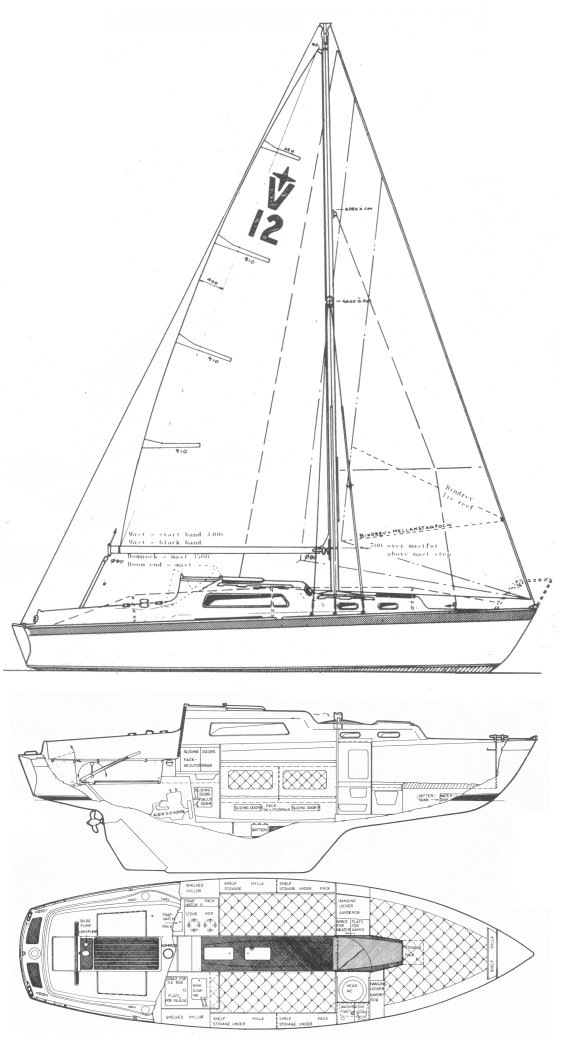

The Vega 27 albin is a 27.08ft masthead sloop designed by Per Brohäll and built in fiberglass by Albin Marine between 1965 and 1979.
3450 units have been built.
The Vega 27 albin is a light sailboat which is a reasonably good performer. It is stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally very small. There is a very short water supply range.
Main features
| Model | Vega 27 albin | ||
| Length | 27.08 ft | ||
| Beam | 8.08 ft | ||
| Draft | 3.67 ft | ||
| Country | Sweden (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.09 | ||
| Ballast / displ. | 39.78 % | ||
| Displ. / length | 186.03 | ||
| Comfort ratio | 20 | ||
| Capsize | 1.88 |
Hull
| Hull type | Monohull fin keel | ||
| Construction | Fiberglass | ||
| Waterline length | 23 ft | ||
| Maximum draft | 3.67 ft | ||
| Displacement | 5070 lbs | ||
| Ballast | 2017 lbs | ||
| Hull speed | 6.43 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 296 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 156.62 sq.ft | ||
| Sail area main | 140.36 sq.ft | ||
| I | 30.80 ft | ||
| J | 10.17 ft | ||
| P | 25.92 ft | ||
| E | 10.83 ft |
Engine
| Nb engines | 1 | ||
| Total power | 13 HP | ||
| Fuel capacity | 9 gals |
Accommodations
| Water capacity | 17 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Albin Marine | ||
| Designer | Per Brohäll | ||
| First built | 1965 | ||
| Last built | 1979 | ||
| Number built | 3450 |
