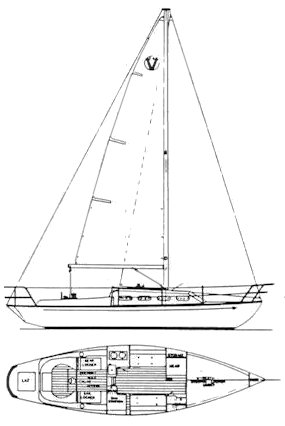

The Victoria 26 mcvay is a 26.6ft masthead sloop designed by G. William McVay and built in fiberglass by Victoria Yachts Co. between 1982 and 1982.
22 units have been built.
The Victoria 26 mcvay is a moderate weight sailboat which is a reasonably good performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat. The fuel capacity is originally very small. There is a short water supply range.
Main features
| Model | Victoria 26 mcvay | ||
| Length | 26.60 ft | ||
| Beam | 8 ft | ||
| Draft | 2.50 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 17.42 | ||
| Ballast / displ. | 41.03 % | ||
| Displ. / length | 234.81 | ||
| Comfort ratio | 17.46 | ||
| Capsize | 2.04 |
Hull
| Hull type | Monohull keel with centerboard | ||
| Construction | Fiberglass | ||
| Waterline length | 19.50 ft | ||
| Maximum draft | 4.75 ft | ||
| Displacement | 3900 lbs | ||
| Ballast | 1600 lbs | ||
| Hull speed | 5.92 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 269 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 15 HP | ||
| Fuel capacity | 12 gals |
Accommodations
| Water capacity | 40 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Victoria Yachts Co. | ||
| Designer | G. William McVay | ||
| First built | 1982 | ||
| Last built | 1982 | ||
| Number built | 22 |
