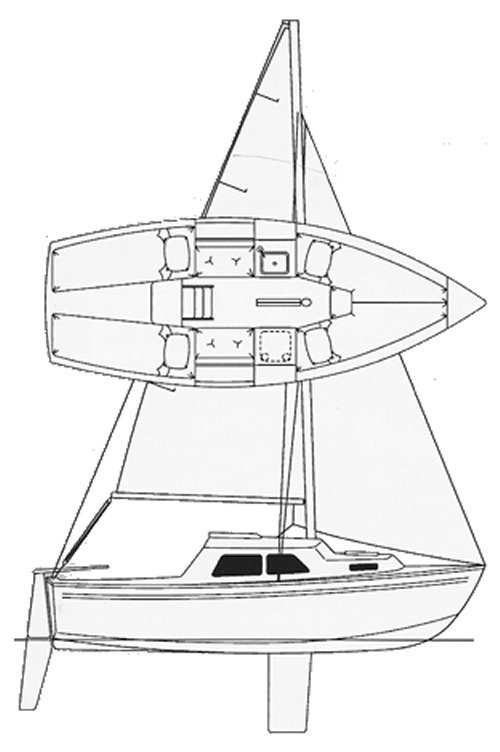

The West wight potter 19 is a 18.75ft fractional sloop designed by Herb Stewart and built in fiberglass by International Marine (USA) since 1979.
The West wight potter 19 is a light sailboat which is a reasonably good performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | West wight potter 19 | ||
| Length | 18.75 ft | ||
| Beam | 7.50 ft | ||
| Draft | 0.50 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.10 | ||
| Ballast / displ. | 30.20 % | ||
| Displ. / length | 116.37 | ||
| Comfort ratio | 7.45 | ||
| Capsize | 2.81 |
Hull
| Hull type | Monohull lifting keel | ||
| Construction | Fiberglass | ||
| Waterline length | 16.75 ft | ||
| Maximum draft | 3.58 ft | ||
| Displacement | 1225 lbs | ||
| Ballast | 370 lbs | ||
| Hull speed | 5.48 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 115 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 5 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | International Marine (USA) | ||
| Designer | Herb Stewart | ||
| First built | 1979 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
