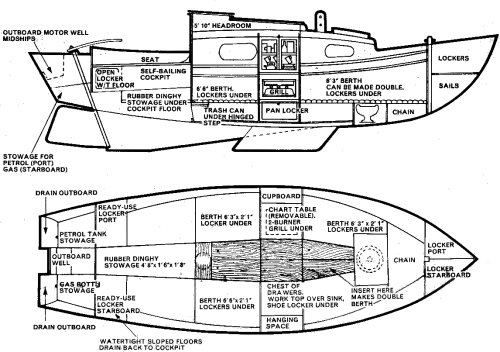

The Westerly 22 is a 22.25ft gunter rig designed by Denys A. Rayner and built in fiberglass by Westerly Marine Construction Ltd. between 1963 and 1967.
332 units have been built.
The Westerly 22 is a moderate weight sailboat which is a reasonably good performer. It is reasonably stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat. The fuel capacity is originally small. There is a very short water supply range.
Main features
| Model | Westerly 22 | ||
| Length | 22.25 ft | ||
| Beam | 7.50 ft | ||
| Draft | 2.25 ft | ||
| Country | United Kingdom (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.95 | ||
| Ballast / displ. | 33.33 % | ||
| Displ. / length | 228.34 | ||
| Comfort ratio | 17.04 | ||
| Capsize | 2.05 |
Hull
| Hull type | Monohull twin Keel | ||
| Construction | Fiberglass | ||
| Waterline length | 18.33 ft | ||
| Maximum draft | 2.25 ft | ||
| Displacement | 3150 lbs | ||
| Ballast | 1050 lbs | ||
| Hull speed | 5.74 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Gunter rig | ||
| Sail area (100%) | 227 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 22 gals |
Accommodations
| Water capacity | 22 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Westerly Marine Construction Ltd. | ||
| Designer | Denys A. Rayner | ||
| First built | 1963 | ||
| Last built | 1967 | ||
| Number built | 332 |
