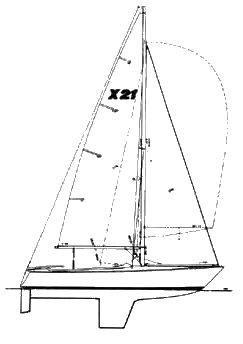

The X 21norton fr is a 21.0ft fractional sloop designed by Tom Norton and built in fiberglass since 1979.
The X 21norton fr is a light sailboat which is a good performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | X 21norton fr | ||
| Length | 21 ft | ||
| Beam | 6.50 ft | ||
| Draft | 4 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 18.52 | ||
| Ballast / displ. | 50 % | ||
| Displ. / length | 199.92 | ||
| Comfort ratio | 16.51 | ||
| Capsize | 1.94 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 17.50 ft | ||
| Maximum draft | 4 ft | ||
| Displacement | 2400 lbs | ||
| Ballast | 1200 lbs | ||
| Hull speed | 5.61 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 207 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 96.25 sq.ft | ||
| Sail area main | 110.50 sq.ft | ||
| I | 25 ft | ||
| J | 7.70 ft | ||
| P | 26 ft | ||
| E | 8.50 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Tom Norton | ||
| First built | 1979 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
