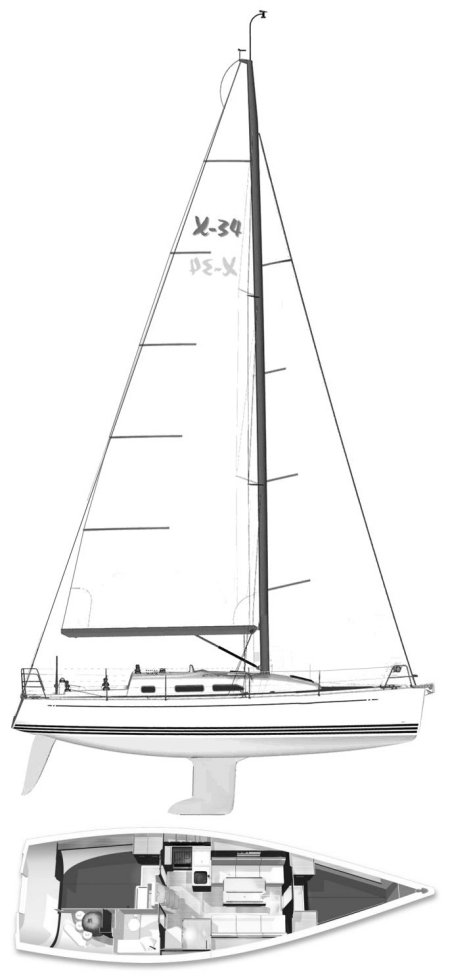

The X 34 is a 34.0ft fractional sloop designed by Niels Jeppesen and built in fiberglass by X-Yachts between 2007 and 2013.
144 units have been built.
The X 34 is a light sailboat which is a good performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a short water supply range.
Main features
| Model | X 34 | ||
| Length | 34 ft | ||
| Beam | 11.20 ft | ||
| Draft | 6.23 ft | ||
| Country | Denmark (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 19.96 | ||
| Ballast / displ. | 41.51 % | ||
| Displ. / length | 196.71 | ||
| Comfort ratio | 23.27 | ||
| Capsize | 1.98 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 29.82 ft | ||
| Maximum draft | 6.23 ft | ||
| Displacement | 11684 lbs | ||
| Ballast | 4850 lbs | ||
| Hull speed | 7.32 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 640 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 284.35 sq.ft | ||
| Sail area main | 354.97 sq.ft | ||
| I | 47 ft | ||
| J | 12.10 ft | ||
| P | 46.10 ft | ||
| E | 15.40 ft |
Engine
| Nb engines | 1 | ||
| Total power | 20 HP | ||
| Fuel capacity | 21 gals |
Accommodations
| Water capacity | 52 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | X-Yachts | ||
| Designer | Niels Jeppesen | ||
| First built | 2007 | ||
| Last built | 2013 | ||
| Number built | 144 |
