The Trismus 37 is a 36.75ft cutter designed by Morgan Embroden / JP Brouns and built in fiberglass resin infusion with balsa sandwich deck and hull by Chantiers navals d'herbignac (FR) between 1975 and 1981.
200 units have been built.
It accomodates 7 people in 2 cabins plus salon.
The Trismus 37 is a heavy sailboat which is a reasonably good performer. It is reasonably stable / stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat. The fuel capacity is originally small. There is a short water supply range.
Main features
| Model | Trismus 37 | ||
| Length | 36.75 ft | ||
| Beam | 11.48 ft | ||
| Draft | 2.95 ft | ||
| Country | France (Europe) | ||
| Estimated price | $ 48800 |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 17.04 | ||
| Ballast / displ. | 25 % | ||
| Displ. / length | 305.76 | ||
| Comfort ratio | 33.33 | ||
| Capsize | 1.76 |
Hull
| Hull type | Monohull long keel with two centerboards | ||
| Construction | Fiberglass resin infusion with balsa sandwich deck and hull | ||
| Waterline length | 29.53 ft | ||
| Maximum draft | 6.23 ft | ||
| Displacement | 17636.96 lbs | ||
| Ballast | 4409.24 lbs | ||
| Hull speed | 7.28 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt

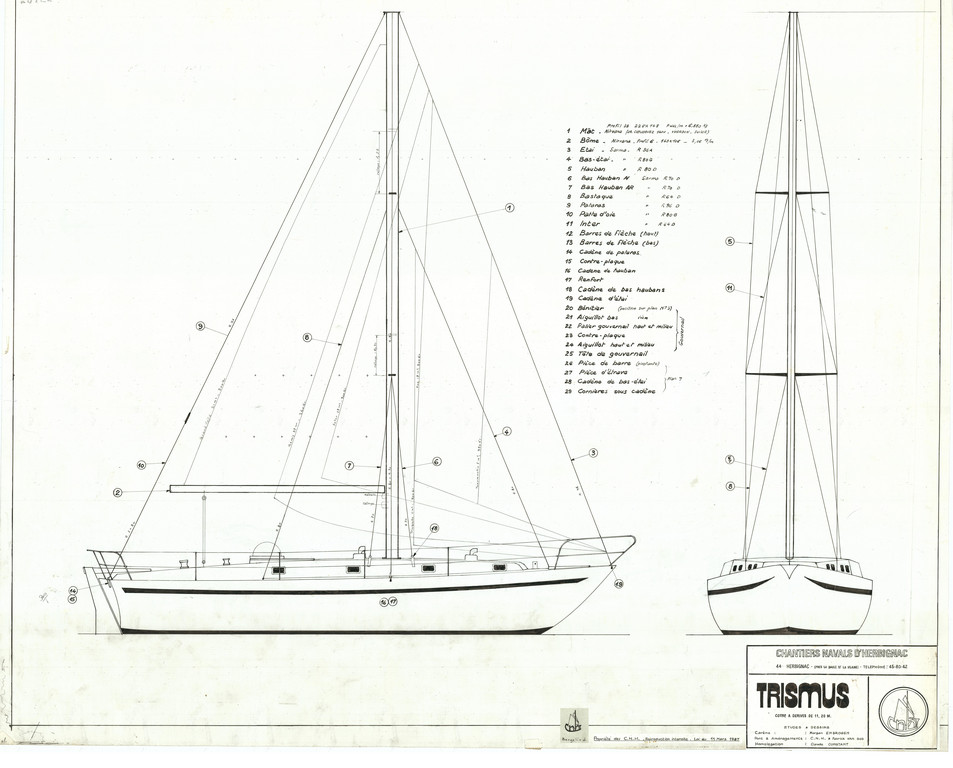

Rigging
| Rigging | Cutter | ||
| Sail area (100%) | 721.18 sq.ft | ||
| Air draft | 49.21 ft | ||
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 30 HP | ||
| Fuel capacity | 49.66 gals |

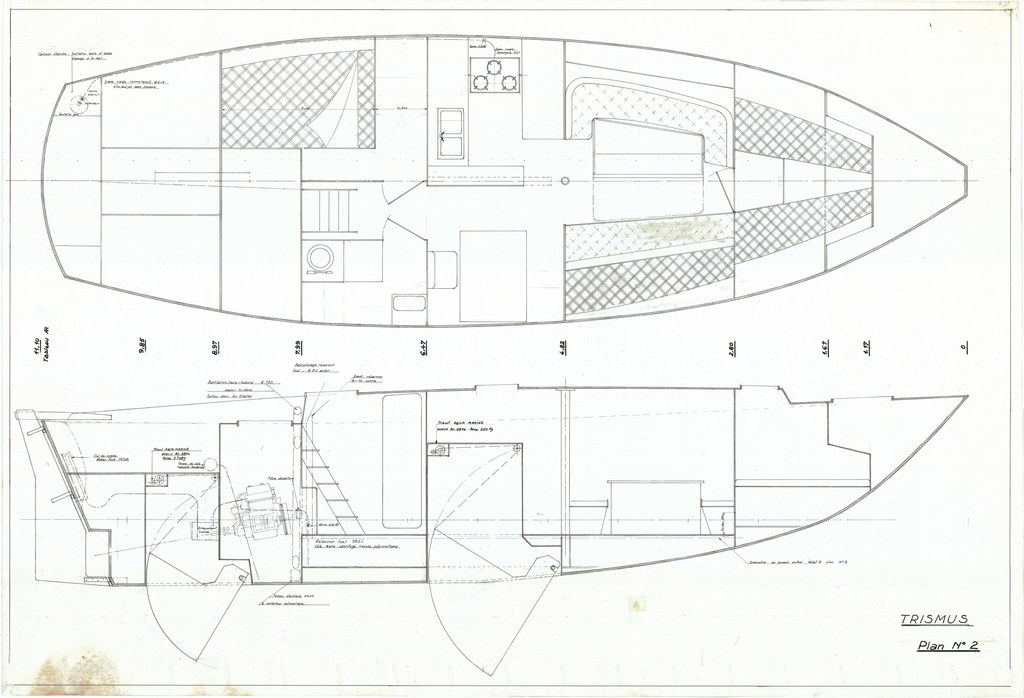

Accommodations
| Water capacity | 79.25 gals | ||
| Headroom | 6.50 ft | ||
| Nb of cabins | 2 | ||
| Nb of berths | 7 | ||
| Nb heads | 1 |
Builder data
| Builder | Chantiers navals d'herbignac (FR) | ||
| Designer | Morgan Embroden / JP Brouns | ||
| First built | 1975 | ||
| Last built | 1981 | ||
| Number built | 200 |
