The Lutje 52 is a 52.17ft masthead ketch designed by Horst E. Glacer and built in aluminum by Yachtbau - Lutje since 1980.

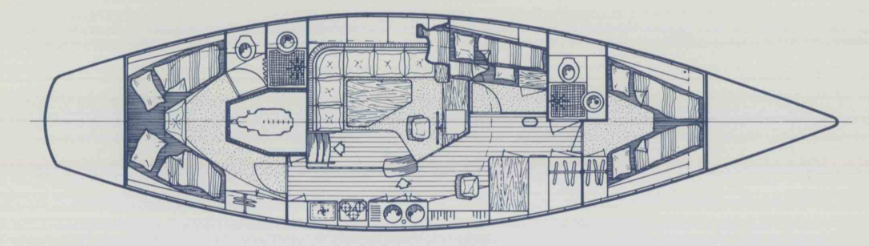

It accomodates 6 people in 3 cabins plus salon.
The Lutje 52 is a heavy sailboat which is slightly under powered. It is very stable / stiff and has an excellent righting capability if capsized. It is best suited as a heavy bluewater cruising boat. The fuel capacity is excellent. There is an excellent water supply range.
Main features
| Model | Lutje 52 | ||
| Length | 52.17 ft | ||
| Beam | 14.60 ft | ||
| Draft | 4.92 ft | ||
| Country | Germany (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 15.85 | ||
| Ballast / displ. | 41.30 % | ||
| Displ. / length | 305.76 | ||
| Comfort ratio | 48.97 | ||
| Capsize | 1.58 |
Hull
| Hull type | Monohull keel with centerboard | ||
| Construction | Aluminum | ||
| Waterline length | 41.99 ft | ||
| Maximum draft | 9.02 ft | ||
| Displacement | 50706.26 lbs | ||
| Ballast | 20943.89 lbs | ||
| Hull speed | 8.68 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Ketch | ||
| Sail area (100%) | 1356.25 sq.ft | ||
| Air draft | 62.99 ft | ||
| Sail area fore | 893.40 sq.ft | ||
| Sail area main | 495.14 sq.ft | ||
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 130 HP | ||
| Fuel capacity | 528.34 gals |
Accommodations
| Water capacity | 435.88 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 3 | ||
| Nb of berths | 6 | ||
| Nb heads | 2 |
Builder data
| Builder | Yachtbau - Lutje | ||
| Designer | Horst E. Glacer | ||
| First built | 1980 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
