The Exploration 60 Garcia is a 63.98ft cutter designed by Berret Racoupeau Yacht Design and built in aluminum by Garcia Yachts since 2024.

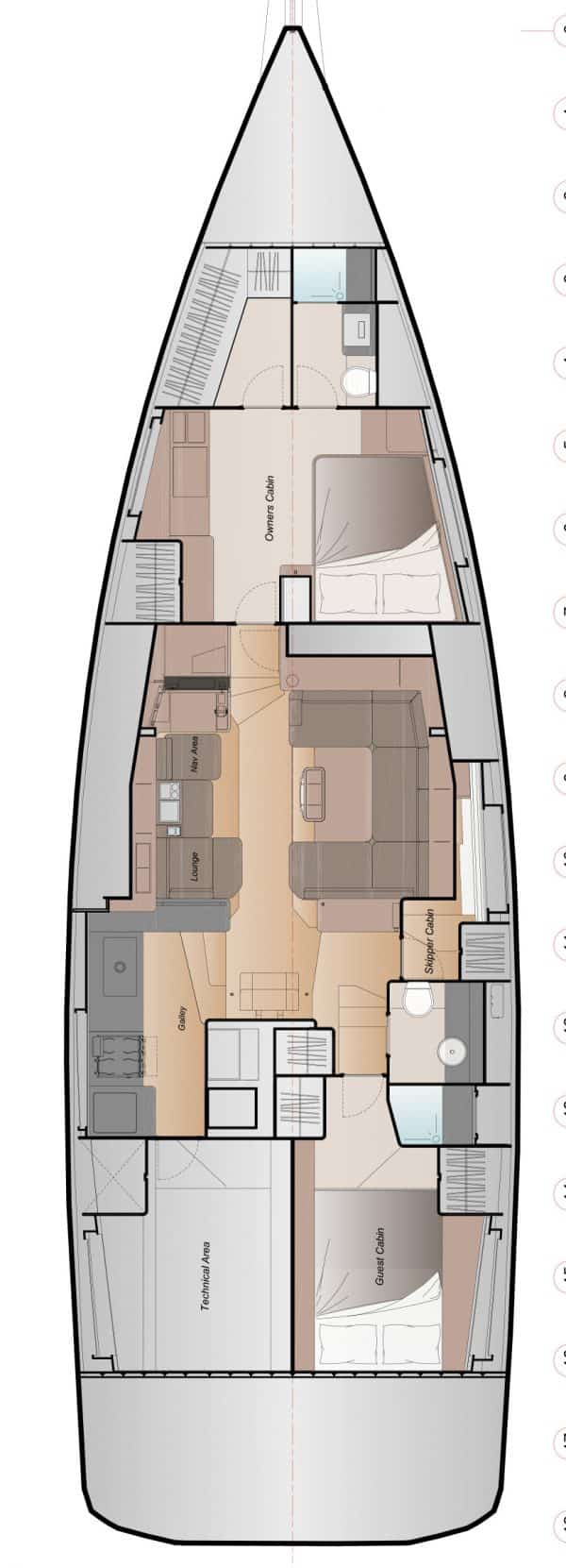

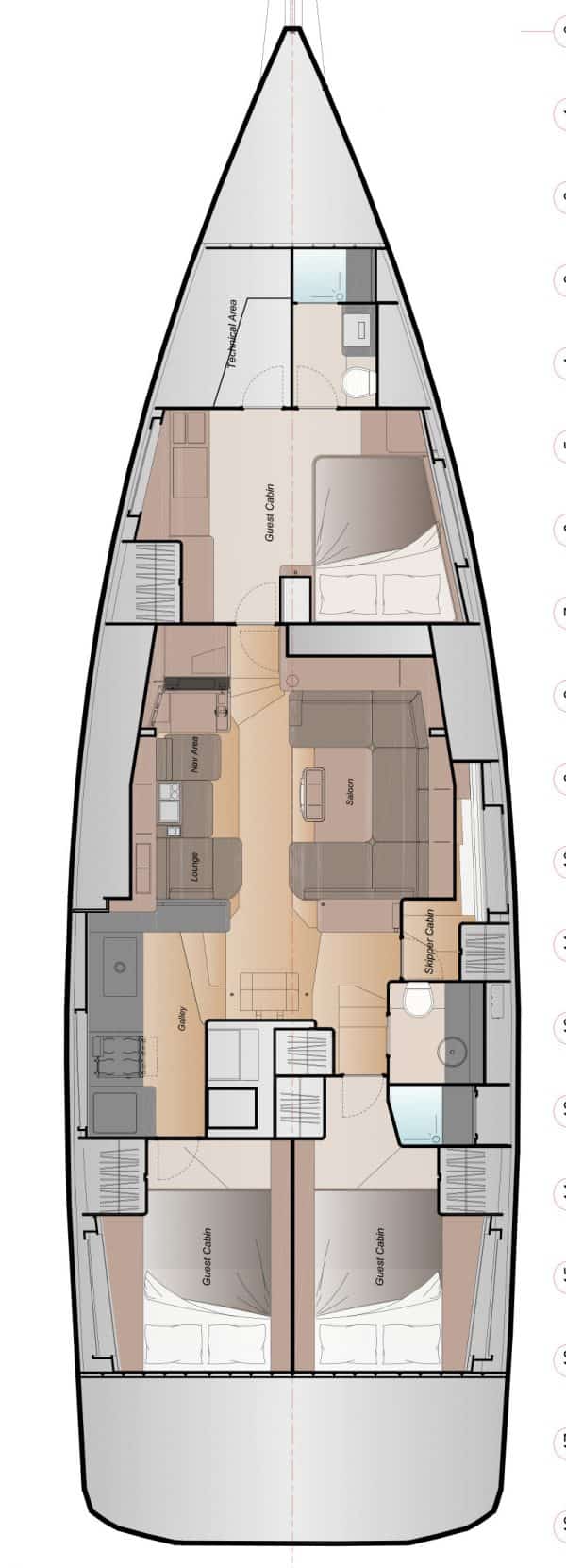

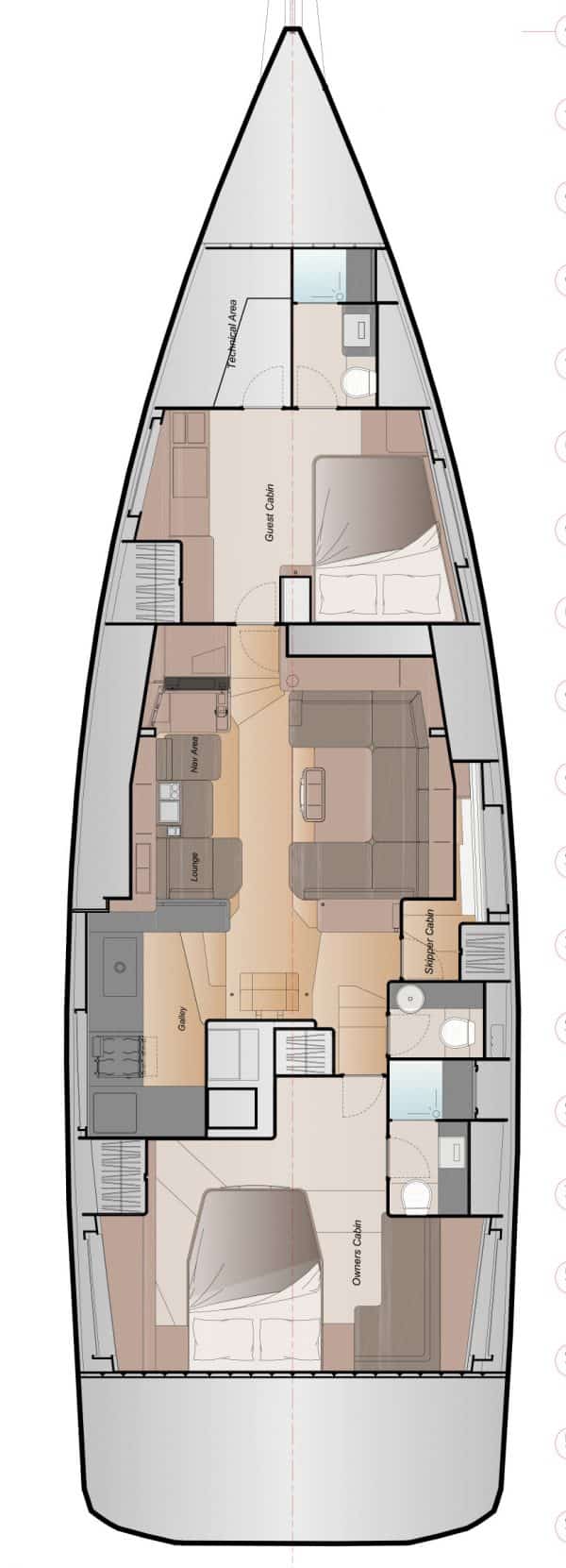

It accomodates 8 people in 4 cabins plus salon.
The Exploration 60 Garcia is a moderate weight sailboat which is slightly under powered. It is not stiff and has an excellent righting capability if capsized. It is best suited as a heavy bluewater cruising boat. The fuel capacity is excellent. There is an excellent water supply range.
Main features
| Model | Exploration 60 Garcia | ||
| Length | 63.98 ft | ||
| Beam | 17.72 ft | ||
| Draft | 4.92 ft | ||
| Country | France (Europe) | ||
| Estimated price | $ 3468000 |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 15.97 | ||
| Ballast / displ. | 27.58 % | ||
| Displ. / length | 206.76 | ||
| Comfort ratio | 44.94 | ||
| Capsize | 1.67 |
Hull
| Hull type | Monohull centerboard | ||
| Construction | Aluminum | ||
| Waterline length | 55.02 ft | ||
| Maximum draft | 11.98 ft | ||
| Displacement | 77139.65 lbs | ||
| Ballast | 21274.58 lbs | ||
| Hull speed | 9.94 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Cutter | ||
| Sail area (100%) | 1808.34 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 175 HP | ||
| Fuel capacity | 660.43 gals |
Accommodations
| Water capacity | 211.34 gals | ||
| Headroom | 6.40 ft | ||
| Nb of cabins | 4 | ||
| Nb of berths | 8 | ||
| Nb heads | 3 |
Builder data
| Builder | Garcia Yachts | ||
| Designer | Berret Racoupeau Yacht Design | ||
| First built | 2024 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
