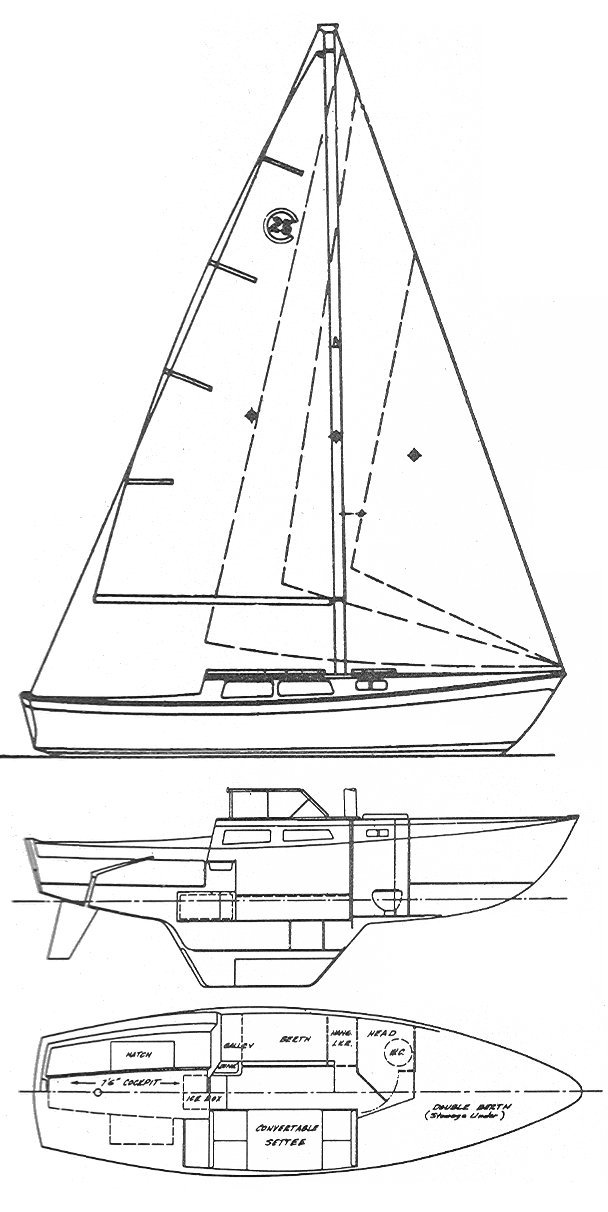

The Cal 25 is a 25.0ft masthead sloop designed by C. William Lapworth and built in fiberglass by Jensen Marine/Cal Boats between 1965 and 1976.
1848 units have been built.
The Cal 25 is a moderate weight sailboat which is a good performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Cal 25 | ||
| Length | 25 ft | ||
| Beam | 8 ft | ||
| Draft | 4 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 18.24 | ||
| Ballast / displ. | 42.50 % | ||
| Displ. / length | 223.21 | ||
| Comfort ratio | 18.01 | ||
| Capsize | 2.02 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 20 ft | ||
| Maximum draft | 4 ft | ||
| Displacement | 4000 lbs | ||
| Ballast | 1700 lbs | ||
| Hull speed | 5.99 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 286 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 149 sq.ft | ||
| Sail area main | 137.50 sq.ft | ||
| I | 29.80 ft | ||
| J | 10 ft | ||
| P | 25 ft | ||
| E | 11 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Jensen Marine/Cal Boats | ||
| Designer | C. William Lapworth | ||
| First built | 1965 | ||
| Last built | 1976 | ||
| Number built | 1848 |
